UNILIN Insulation Products SAFE-R SR/FB

Safe-R

SR/FB

Name: SR/FB
Brand: Unilin Insulation
Availability: InStock

Steel & Timber Frame Wall Insulation

SR/FB

Insulation for Steel & Timber Frame

Safe-R Framing Board SR/FB is designed for use with steel or timber frame applications up to 15m in height. With an Euroclass C -s1 d0 Fire Classification, the framing board can be used between studs or as an insulated sheathing board. Using SR/FB provides excellent U-Values and improved thermal bridging detailing.

Enquire about this product

Attributes

Product Details
Product name	SR/FB
Material Code	Please refer to packing list
Type	Phenolic Wall Insulation
Application	Wall insulation
Thickness	50mm, 60mm, 75mm, 80mm, 100mm
Inner facing	composite foil facings
Outer facing	composite foil facings
Thermal conductivity	0.020 – 0.021 (W/mK)
Compressive strength	CS (10\Y) 100
Unit of measurement	mm
Size/Dimensions	2400 x 1200mm
Reaction to fire	Euroclass C s1 d0
Installation guidelines	Please refer to marketing materials
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details.

Typical U-Values

Table 1

U-Value calculations to EN ISO:6946 :2017
SR/FB

Timber Frame (Masonry Facing)
Build up:

• Plasterboard
• Vapour control layer
• SR/FB between 140mm timber studs
• Sheathing board
• SR/FB over studs
• Low E cavity
• Brick

Safe R SR/FB
Between	Over	U Value
60	50	0.16
60	60	0.15
60	80	0.13
60	100	0.12
80	50	0.15
80	60	0.14
80	80	0.12
80	100	0.11
100	50	0.13
100	60	0.12
100	80	0.11
100	100	0.10

Table 2
U-Value calculations to EN ISO:6946 :2017
SR/FB

Timber Frame (Ventilated)
Build up

• Plasterboard
• Vapour control layer
• SR/FB between 140mm timber studs
• Sheathing board
• SR/FB over studs
• Ventilated cavity between battens
• Timber cladding

Between	Over	U Value
60	50	0.18
60	60	0.16
60	80	0.14
60	100	0.12
80	50	0.16
80	60	0.15
80	80	0.13
80	100	0.11
100	50	0.14
100	60	0.13
100	80	0.12
100	100	0.10

Table 3
U-Value calculations to EN ISO:6946 : 2017
SR/FB

Steel Frame (Masonry Facing)
Build up

• Plasterboard
• Vapour control layer
• Mineral wool between steel studs (λ = 0.038)
• Sheathing Board
• SR/FB over studs
• Low E cavity
• Brick

Between	Over	U-Value
100	50	0.19
100	60	0.18
100	80	0.15
100	100	0.13
120	50	0.19
120	60	0.17
120	80	0.15
120	100	0.12
140	50	0.18
140	60	0.16
140	80	0.14
140	100	0.12

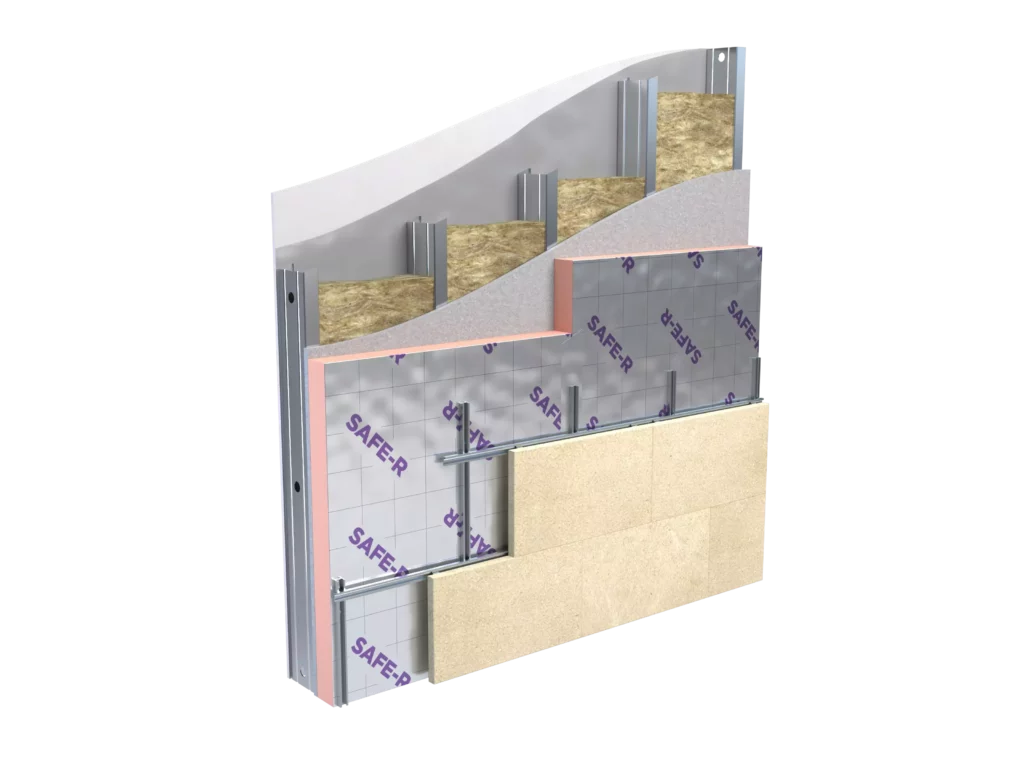

Table 4
U-Value calculations to EN ISO:6946 : 2017
SR/FB

Steel Frame (Ventilated)
Build up:

• Plasterboard
• Vapour control layer
• Mineral wool between steel studs (λ = 0.038)
• Sheathing Board
• SR/FB over studs
• Ventilated cavity between brackets
• Rainscreen Cladding

Between	Over	U-Value
100	60	0.25
100	80	0.22
100	100	0.19
100	120	0.18
120	60	0.24
120	80	0.21
120	100	0.19
120	120	0.17
140	60	0.24
140	80	0.21
140	100	0.18
140	120	0.17

Key Points

Phenolic Insulation

Euroclass C-s1 d0 Fire Classification

Suitable for use in Steel and Timber Frame Systems

Lower Lambda Value for improved U-Values

Reduced Thermal Bridging

Call the technical team today 046 906 6050

Safe-R Products

SR/TBFL-MF

Fireline Thermal Laminate

Diagram showing SR FB in wall applications | Diagram showing SR FB in wall applications

SR/ST

Soffit Application

SR/STP

Soffit Application

FAQs

What is Phenolic Insulation?

Phenolic insulation is a rigid, lightweight foam made from phenolic resin with a closed-cell structure.

How is Phenolic Insulation made?

A wet foam mixture is applied directly to the lower facing layer, where it expands upward to contact the upper layer. This process forms small airtight cells that trap gas and limit heat transfer. The material is cured under controlled heat and pressure.

What is the Thermal Conductivity of Phenolic Insulation?

Our Safe-R range offers various solutions depending on your project and has a thermal conductivity as low as 0.021 W/mK.

Why choose Phenolic Insulation?

Phenolic insulation is considered one of the most thermally efficient insulation products, providing high R-Values in thinner board compared to other insulation materials. This range offers different solutions depending on your project needs.

Where can I use Phenolic Insulation?

Phenolic Insulation boards can be used in many applications or projects. Whether you are looking at a new build, a renovation project, commercial or residential, Phenolic insulation can be considered for your project. It can be used in roof, walls, soffit and floor applications, making it a viable solution for a variety of constructions.

What are the benefits of Phenolic Insulation?

Lower Lambda (thermal conductivity) values for improved U-Values

Reduced Insulation Thickness

Suitable for a variety of applications

Cost-effective solution in refurbishment and new build

How does Phenolic Insulation work?

Phenolic Insulation works by reducing the transfer of heat through a building’s wall, roof, floors and other structural components.

The lower the thermal conductivity in the phenolic insulation, the higher its insulating capacity.

Heat conduction and lambda value

As it has a low thermal conductivity it is difficult for heat to pass through it, which makes it is such a good insulator.

R-Value

A low lambda value (Thermal conductivity) results in a high R-value or thermal resistance, a measure by which we assess specific insulation products in relation to their insulation thickness. This thermal resistance quantifies the area and temperature difference needed to transfer 1W of heat energy. The higher the R- value, the lower the amount of heat loss.

The low lambda value of Phenolic means that anyone working with the product can insulate a building comfortably thanks to its thickness while optimising the energy performance. With Phenolic, you can make the most efficient use of the space available to you. Since you need less insulation material overall, this is the definition of a smart investment.

Phenolic Insulation and Reaction to Fire

The fire rating of Unilin Insulation Phenolic laminate range has a high Euroclass rating of B-s1,d0. It is important to check the fire rating of each product when specifying, as fire ratings typically vary depending on their application

Phenolic in Combination with Other Materials

In some projects, it may also be advisable to choose a combination of materials in order to achieve the best result for your project.

For Example, our Stonewool products offer a non-combustible solution.

Alternatively, our ECO360 Range offers our optimum sustainable option.
