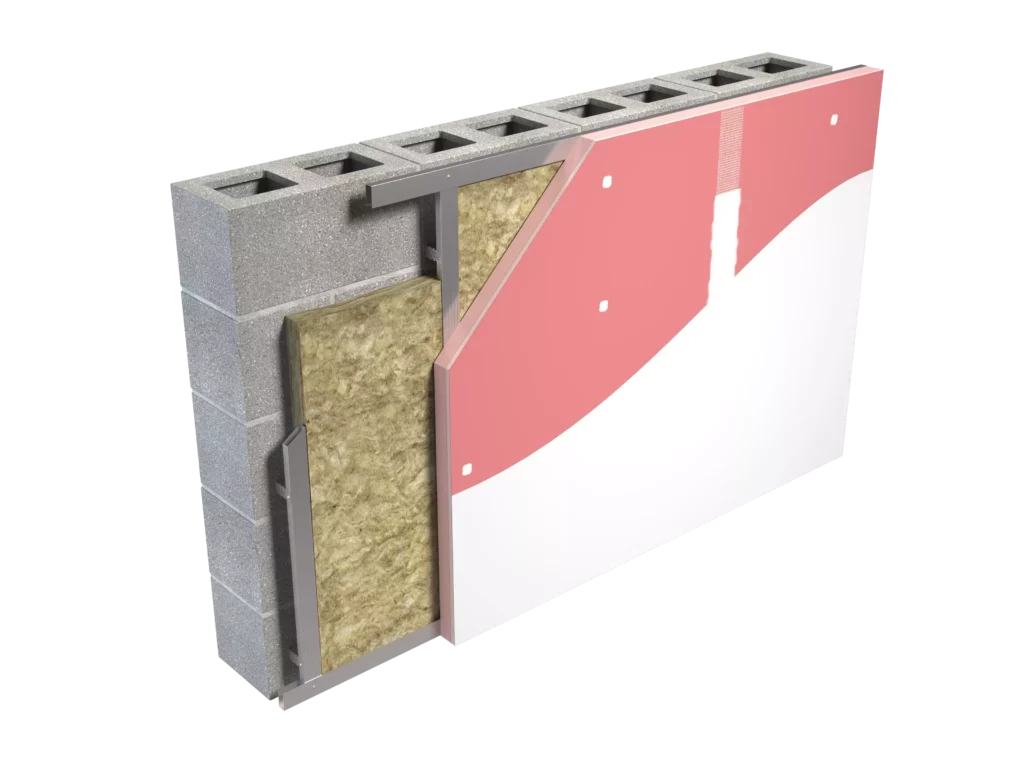

UNILIN Insulation Products SAFE-R SR/TBFL-MF

Safe-R

SR/TBFL-MF

Fireline Thermal Laminate

SR/TBFL-MF

Fireline Thermal Laminate

A composite insulated panel comprising of a rigid Phenolic core and 15mm Fireline plasterboard achieving a Euroclass B s1 d0 reaction to fire classification for internal applications. The superior thermal performance provides excellent U-Values with minimal intrusion into valuable living space.

Safe-R Fireline has a REI 45 fire resistance rating in accordance with EN 13501-2 in a system for ceiling and roof applications.

Enquire about this product

Attributes

Product Details
Product name	SR/TBFL-MF
Material code	Please refer to packing list
Type	Phenolic Wall insulation
Application	Roof / Drylining
Thickness	50mm, 60mm, 70mm, 80mm, 100mm
Type of finishing board	15mm Fireline plasterboard
Inner facing	composite foil facings
Outer facing	composite foil facings
Thermal conductivity	0.021 – 0.020 (W/mK)
Unit of measurement	mm
Reaction to fire	Euroclass B s1 d0
Installation guide	Please refer to marketing materials

Typical U-Values

Table 1 – Sloped Roofs
U-Value calculations to EN ISO:6946
Safe-R Fireline Thermal Laminate Wall Insulation for Pitched Roofs

Safe-R SR/TBFL MF
Tiles
Battens
Breather membrane
Air layer between rafters
SR/PR between rafters
SR/TBFL MF below rafters
15mm Fireline Plasterboard

SR/PR between rafters	Safe-R Fireline Thermal Laminate under rafters	600mm Centres	400mm Centres
100mm	65mm*	0.15	0.15
120mm	65mm*	0.13	0.14
120mm	75mm*	0.12	0.13
120mm	85mm*	0.12	0.12
120mm	95mm*	0.11	0.12
120mm	115mm*	0.10	0.10

*Total thickness

Table 2 Walls drylined on battens

U-Value calculations to EN ISO:6946

Safe-R Fireline Thermal Laminate Wall Insulation

Thickness	65mm	75mm	85mm	95mm	115mm
Wall Type
215mm Hollow Block (External Render)	0.30	0.26	0.23	0.21	0.17
Solid Brick	0.29	0.26	0.23	0.21	0.17
Cavity Wall Pumped Block & Block*	0.16	0.15	0.14	0.13	0.12
100mm Pumped Bead @ 0.033W/mK*

* Total thickness of composite panel provided.

Key Points

Superior Thermal Performance 0.021-0.020 W/mK

Fire Performance – REI 45 in accordance with EN 13501-2

Reaction To Fire – B-s1, d0

Space Saving – High performance to thickness ratio

Call the technical team today 046 906 6050
