UNILIN Insulation Products THIN-R FR/BGM

Thin-R

FR/BGM

Total Flat Roof Insulation Solutions

FR/BGM

Partially Bonded, Torched-on, Built-up Bituminous Felt Systems

Flat Roof BGM is faced with a polypropylene fleece finished bitumen/glass fibre working surface and a mineral glass facing to the underside. As a key component of roof insulation, Flat Roof BGM is part of Unilin’s range of flat roof boards providing total solutions for flat roof projects.

Enquire about this product

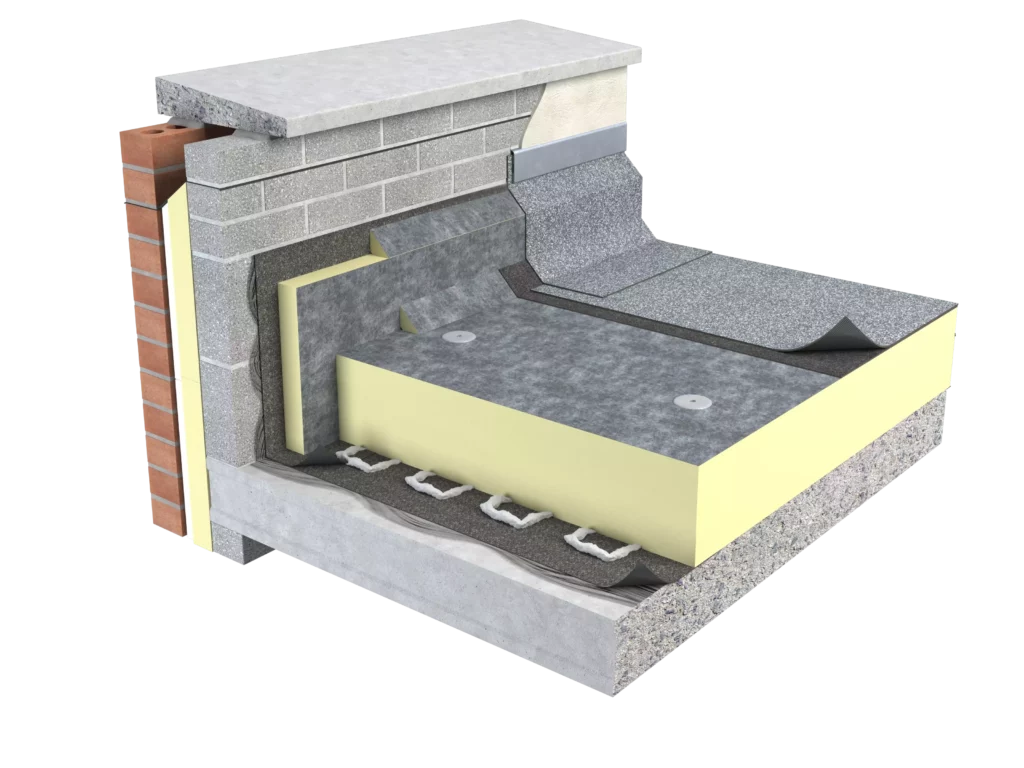

Unilin Insulation image of Flat roof frbgm

Attributes

Product Details
Product name	FR/BGM
Material Code	Please see Packing List
Type	PIR Roof Insulation
Application	Flat Roof Insulation
Thickness	25mm, 50mm, 60mm, 70mm, 80mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm
Inner facing	Mineral Glass
Outer facing	fleece finished bitumen/glass fiber facings
Thermal conductivity	0.024 – 0.027 W/mK
Compressive strength	CS (10\Y) 150
Unit of measurement	mm
Size/Dimensions	1200 x 1200mm
Reaction to fire	Euroclass F
Installation guide	See brochure
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details.

Typical U-Values

Construction	Thickness	U-Value (W/m2K)
Concrete deck⁽¹⁾	150mm	0.15
Metal deck⁽²⁾	160mm	0.15
Timber deck⁽³⁾	150mm	0.15
Concrete deck⁽¹⁾	125mm	0.18
Metal deck⁽²⁾	130mm	0.18
Timber deck⁽³⁾	120mm	0.18
Concrete deck⁽¹⁾	120mm	0.19
Metal deck⁽²⁾	120mm	0.20
Timber deck⁽³⁾	110mm	0.19

⁽¹⁾200mm concrete deck with suspended ceiling below

⁽²⁾0.7mm metal deck with suspended ceiling below

⁽³⁾18mm timber deck with joists and plasterboard below

The given U-Values are indicative only. Adhered application has been used to calculate the U-Value. For calculations on all deck types, please contact Unilin Technical Support.
