UNILIN Insulation Products THIN-R PIR insulation for floors

Thin-R

XT/PR-UF (Floors)

PIR Floor insulation

xt/pr uf floors image of product - Floor Insulation

XT/PR_UF (FLOORS)

Ground Supported & Suspended Floors

The floor in any building is an area of considerable downward heat loss when not properly insulated. Thin-R Underfloor will significantly improve the U-Value of new and existing floors.

Thin-R Underfloor is lightweight, easy to install and combines high compressive strength with low thermal conductivity, providing a high performance solution for floor insulation.

Enquire about this product

Thin R XT PR UF PIR underfloor insulation

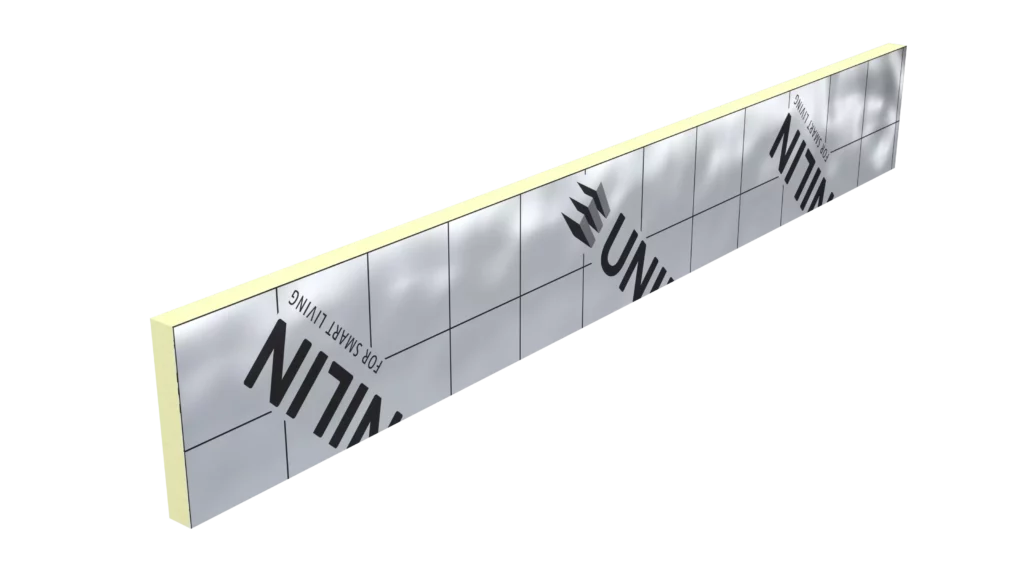

Unilin Insulation image of product XT/PR UF Floors insulation board

Attributes

Product Details
Product name	XT/PR_UF
Type	PIR Floor Insulation
Application	Floors
Thickness	25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm, 150mm
Inner facing	composite foil facings
Outer facing	composite foil facings
Thermal conductivity	0.022
Compressive strength	CS (10\Y) 140
Unit of measurement	mm
Size/Dimensions	2400 x 1200mm
Reaction to fire	Euroclass F
Installation guide	Please refer to marketing materials
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details.

Typical U-Values

Table 1

U-Value calculations to EN ISO:6946

XT/PR_UF (FLOORS) Insulation for Ground Supported Slab

Build-up

65mm screed

Separating layer Polythene sheet

XT/UF with perimeter strip

DPM 1200 gauge polythene or radon barrier

Concrete slab

Perimeter/ Area ratio

	0.3	0.4	0.5	0.6	0.7	0.8	U value

Thickness	75mm	90mm	90mm	90mm	100mm	100mm	0.18
Thickness	100mm	110mm	110mm	120mm	120mm	120mm	0.15
Thickness	120mm	130mm	130mm	140mm	140mm	140mm	0.13

Table 2

U-Value calculations to EN ISO:6946

XT/PR_UF (FLOORS) Beam & Block Suspended Floor

Build Up

65mm screed

Separating layer Polythene sheet

XT/UF with perimeter strip

Beam and block

Perimeter/Area ratio

	0.3	0.4	0.5	0.6	0.7	0.8	U value
Thickness	90mm	90mm	90mm	100mm	100mm	100mm	0.18
Thickness	110mm	110mm	120mm	120mm	120mm	120mm	0.15
Thickness	130mm	140mm	140mm	140mm	140mm	150mm	0.13

Table 3

XT/PR_UF (FLOORS) Hollow Core Floor

Build-up•

65mm screed

Separating layer Polythene sheet

XT/UF with perimeter strip

Hollow core slab

Perimeter/Area ratio

	0.3	0.4	0.5	0.6	0.7	0.8	U value
Thickness	80mm	90mm	90mm	90mm	90mm	90mm	0.18
Thickness	100mm	110mm	110mm	110mm	120mm	120mm	0.15
Thickness	130mm	130mm	130mm	140mm	140mm	140mm	0.13

Key Points

Avoids Intrusion into Living Area

Reduced Risk of Condensation

Lightweight and Easy to Install

Reduced Thermal Bridging

Call the technical team today 046 906 6050
