XtroWall

Partial Fill Cavity Wall Insulation

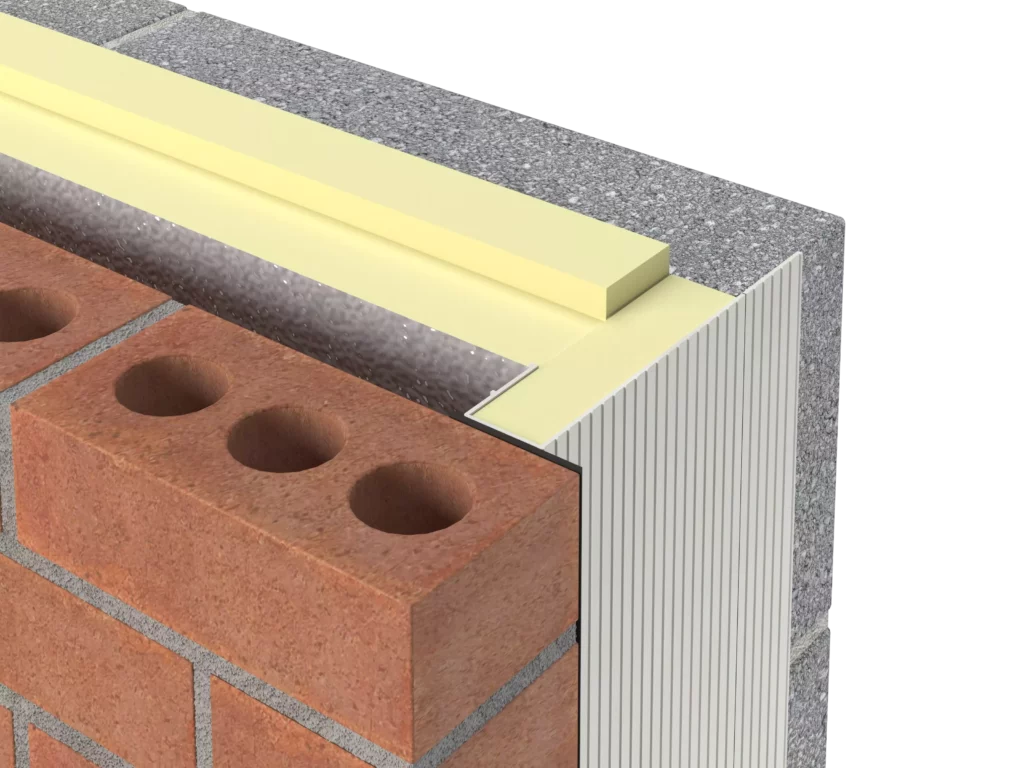

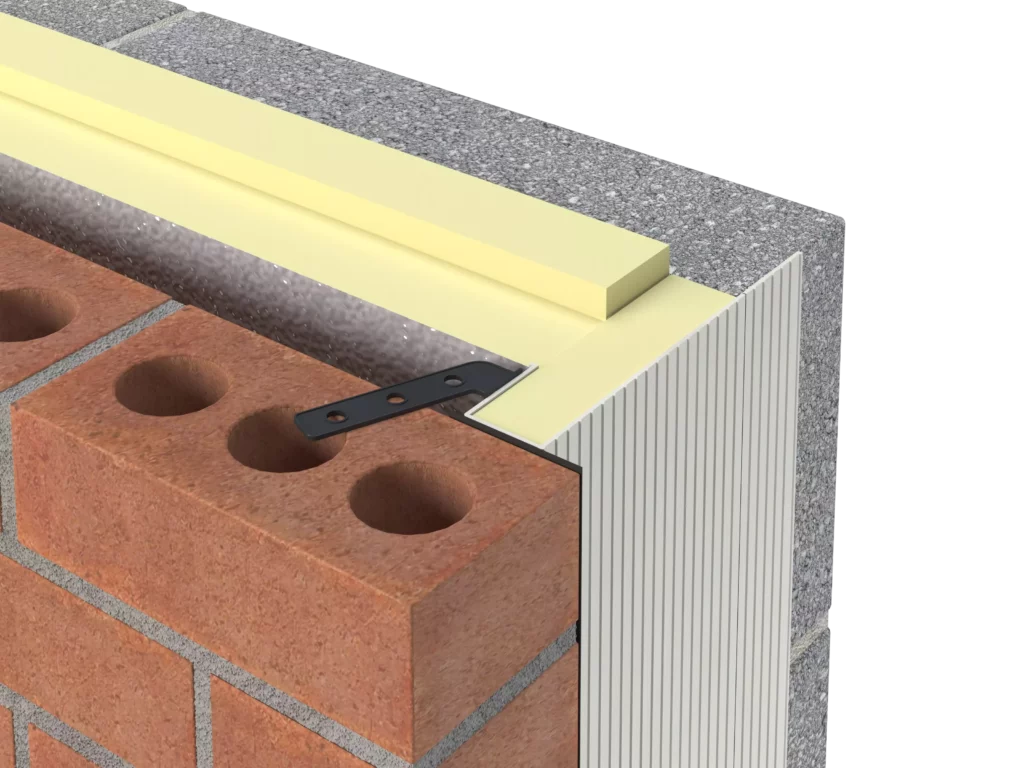

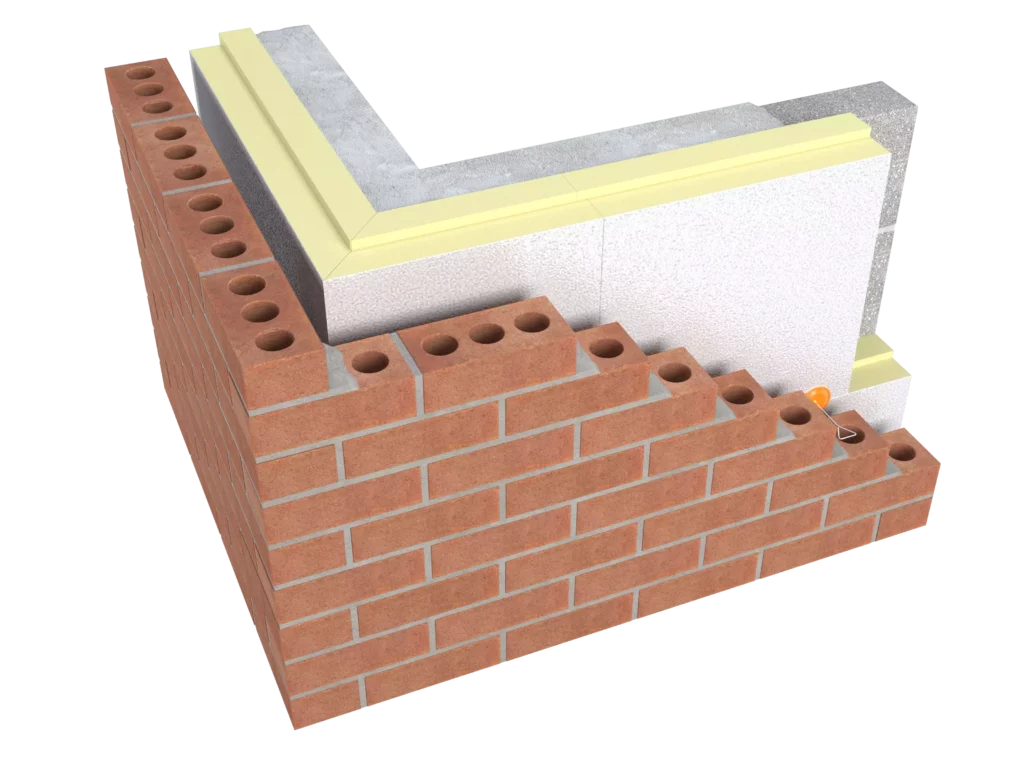

XtroWall is an innovative partial fill wall insulation system incorporating robust facings, engineered jointing details, preformed corners and a certified lambda of 0.021W/mK.

This lower lambda improves U-Values and meets Zero Carbon standards, proving an excellent choice for passive and low energy builds. XtroWall can achieve a passive U-Value of 0.15W/m2K in a traditional cavity wall. Building with XtroWall, a residual cavity is maintained, offering excellent protection against wind driven rain.

Enquire about this product

Attributes

Product Details
Product name	XtroWall
Material code	Please refer to packing list
Type	PIR Wall Insulation
Application	Wall
Thickness	80mm, 90mm, 100mm
Inner facing	textured foil facings
Outer facing	textured foil facings
Thermal conductivity	0.021 (W/Mk)
Unit of measurement	mm
Compressive strength	CS (10\Y) 120
Size/Dimensions	1200 x 450mm
Reaction to fire	Euroclass E
EPD	An Environmental Product Declaration (EPD), certified by IGBC is available for this product. Please contact technical support for further details.
